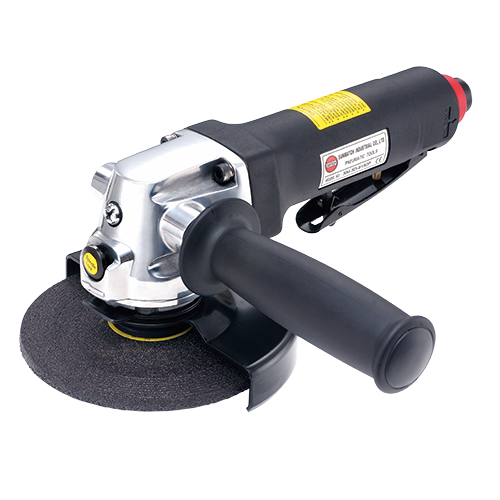

Tool Photo
SM-5D-6192PS
5" Angle Grinder
- Swivel Guard
- With Speed Governor
- 9 Position Adjustable Swivel Guard
- Accept 0.8 mm~6 mm Disc
- Composite Motor Housing
- Side Handle
- Spindle Lock Allows Quick and Easy Disc Change
- Rear Exhaust
- Vibration Reduced Handle (Optional)
- Low Noise 83 dB(A)
- 0.9 HP Motor
Features:
Specifications:
| Model No. | Free Speed (RPM) |
Grinding Wheel Size Inch (mm) |
Spindle Thread | Air Inlet (NPT) |
Hose Size ID Inch (mm) |
Air Consumption CFM (L/Min) Free Speed |
Air Consumption CFM (L/Min) @Load |
Length Inch (mm) |
Weight Lbs (Kg) |
Noise Level dB(A) |
| SM-5D-6192PS/58 | 12,000 | 5 (125) | 5/8"-11 | 1/4" | 3/8 (10) | 20.8 (590) | 22.3 (630) | 9.4 (239) | 4.4 (2) | 83 |
| SM-5D-6192PS/M14 | 12,000 | 5 (125) | M14x2.0 | 1/4" | 3/8 (10) | 20.8 (590) | 22.3 (630) | 9.4 (239) | 4.4 (2) | 83 |
| SM-5D-6192PS/38 | 12,000 | 5 (125) | 3/8"-24 | 1/4" | 3/8 (10) | 20.8 (590) | 22.3 (630) | 9.4 (239) | 4.4 (2) | 83 |
